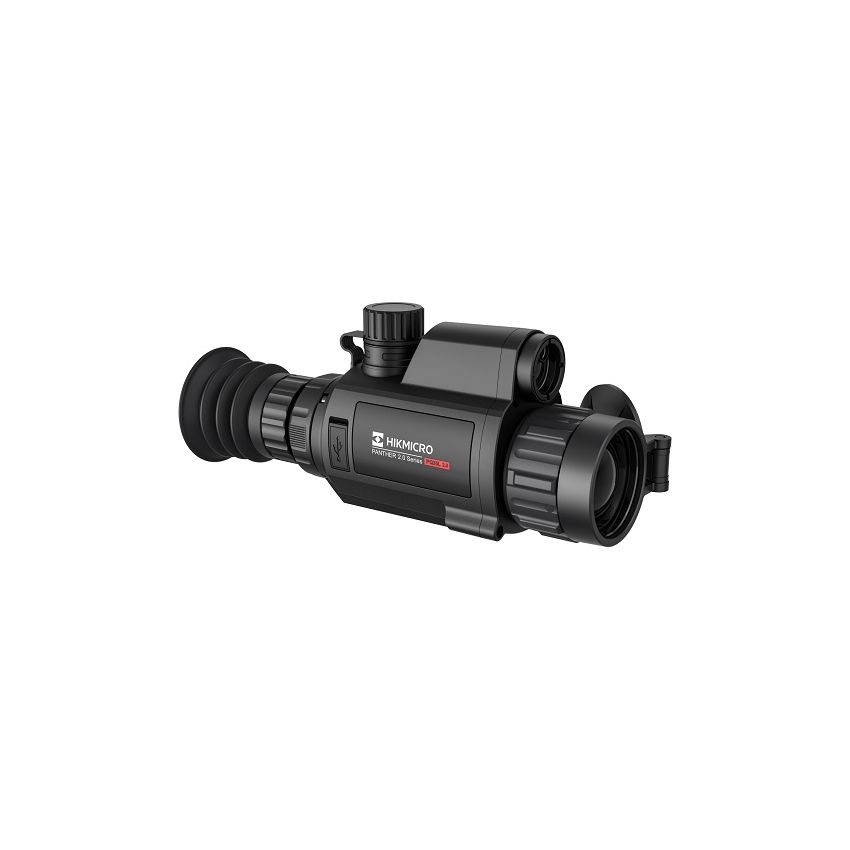

HikMicro Panther 2.0 PQ35L Thermal Imaging Scope

  • 640x512px 12um core with a NETD of <20k
  • 1024x768px OLED display
  • Fast F/1.0 35mm lens
  • Integrated laser rangefinder
  • Observation distance up to 1800m

  • SPECIAL ORDER
    SKU
    HKM-TIHIK735

    Guarantee Safe Checkout

    HikMicro Panther 2.0 PQ35L Thermal Imaging Scope

    The HIKMICRO Panther 2.0 series of thermal imaging scopes comes with its shutter-free technology. The Auto Gain Control - AGC technology automatically adjusts the dynamic range of the image, which is much more advanced than conventional linear AGC as used by most manufacturers. The HIKMICRO Panther 2.0 range also features a new Digital Detail Enhancement (DDE) technology, it uses advanced algorithms to render details more sharply even when they are in low contrast areas (hot / cold objects).

    The built-in laser rangefinder in HIKMICRO Panther 2.0 series allows precise measure of distance. With its integrated powerful VOx 12 μm imaging sensor with NETD <20mK and large aperture F1.0 lens, they ensure clear and detailed image quality even in complete darkness.

    Features:
    • Built-in laser rangefinder
    • Class-leading image quality
    • Ultra long detection range up to 1800m
    • Integrated design and hassle-free operating experience
    • High shock resistance
    • IP67 waterproof rated
    • Replaceable and rechargeable battery
    More Information
    Specifications
    Image Sensor Uncooled Focal Plane Array
    Max. Resolution 640x512
    Frame Rate 50Hz
    Pixel Interval 12 μm
    NETD less than 20 mK (25 °C, F#=1.0)
    Angular field of View 12.52° x 10.03°
    Min. Focusing Distance 2m
    Aperture F1.0
    Display 1024x768, 0.39 inch, OLED
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Image Mode Black Hot, White Hot, Red Hot, Fusion
    Exit Pupil 6mm
    Eye Relief 45mm
    Diopter (Range) -5 D to 3 D
    Dimension 200.38 x 66.32 x 87.10 mm
    Work Temperature/Humidity -30 °C to 55 °C
    Port Type-C
    Record Video On-board video recording
    Capture Snapshot Yes
    Hotspot Yes
    Standby Mode Yes
    Storage Built-in EMMC (16 GB)
    Uniformity Correction Auto, Manual, External Correction
    PIP Yes
    DPC Yes
    Digital Zoom 1X, 2X, 4X, 8X
    Hot Track Yes
    Reticle Yes
    Battery Type One Rechargeable Lithium battery
    Battery Operating Time Up to 6 hours continuous running (@25°C, WiFi and CVBS off)
    Battery Capacity Display Yes
    Anti-reverse Battery Connection Yes
    Overvoltage Protection Yes
    Type-C Power Supply 5 VDC/2 A, USB Type-C interface3
    Supports external power supply
    Safety Class for Laser Class 1
    Wavelength 905nm
    Max. Measuring Range 600m
    Measurement Accuracy ±1m
    Min. Measuring Range 10m
    Manufacturer HikMicro
    Magnification 1.82x
    Objective Diameter 35mm
    Detection Range 1800m
    Warranty 3 years on the device,10 years on the sensor
    Rechargeable Yes
